RV Shore Power Hookup Mistakes That Can Damage Your RV

You've parked, you've leveled, and now you're standing in front of a campground power pedestal wondering what order everything goes in—and whether messing it up means fried appliances or worse. Been there. We all have.

Here's the thing: connecting to RV shore power is one of those skills that sounds technical but is actually just about knowing the right sequence. Nail that, and it becomes completely automatic after your first few campsites. Skip steps (or skip the right gear), and you're rolling the dice every single time.

This guide gives you everything you need to hook up confidently, safely, and without torching your air conditioner.

What Is RV Shore Power, Actually?

Shore power is the electrical supply your RV receives from an external land-based source—most commonly the power pedestals you'll find at campgrounds and RV parks. The term originated in marine contexts, where boats plug into dock-side power, and crossed over naturally into the RV world.

When you're connected to shore power, your RV runs off the campground's grid instead of draining your batteries or burning generator fuel. Your AC, refrigerator, microwave, and outlets all run reliably without watching your battery levels. For full-timers, weekend warriors, and everyone in between, it's the backbone of a comfortable campsite. If you're newer to all of this, our first-time RV living guide covers what the first few weeks of figuring out camp life actually looks like.

Connect Shore Power First — Here's Why

After parking and leveling, a lot of new RVers head straight for the water hookup or start setting up chairs. Resist that. Electricity should be your first utility connection, every time.

Getting on shore power early means your AC and refrigerator start cooling while you handle everything else. If your rig has slide-outs, they extend and retract more reliably on stable shore power than on battery alone. And you'll have light and power while you're connecting water and getting organized—instead of hunting for a flashlight because you let the batteries run down first.

Think of shore power as laying the foundation before you furnish the room. Our RV setup checklist walks through the full arrival sequence—utilities, leveling, slides, and everything else—in the order that makes the least work for you.

30-Amp vs. 50-Amp RV Power: Know Your Rig Before You Plug In

This is the single most important thing to confirm before you touch a campground pedestal. The easiest check: look at the plug on your shore power cord. Thirty-amp plugs have three prongs; fifty-amp plugs have four.

Here's what those numbers mean in practice:

30-amp service runs on a single 120-volt leg and delivers up to 3,600 watts. That's enough for lights, one AC unit, a TV, and modest kitchen appliances—but running your microwave, AC, and electric water heater simultaneously will trip your breaker fast.

50-amp service operates on two 120-volt legs and can deliver up to 12,000 watts total. Larger rigs with multiple AC units, residential refrigerators, and high-draw appliances are built for this.

If the campground only offers 30-amp service, even a 50-amp RV is capped at 30 amps—worth a quick call ahead to confirm what's available at your site. When the pedestal doesn't match your plug, use a heavy-duty RV-rated dogbone adapter, never a household converter. And keep in mind: adapters don't increase your capacity. A 30-to-50-amp adapter still delivers 30 amps, regardless of what your rig can handle. If you're still shopping for your rig or deciding between types, our guide to choosing the right RV for your lifestyle breaks down which rigs typically run 30-amp vs. 50-amp service.

The Gear That Separates Smart RVers From Expensive Lessons

Surge Protector or EMS: Don't Skip This

This is where the "I'll add it later" mentality quietly costs people thousands of dollars. A surge protector or Electrical Management System (EMS) plugs between the campground pedestal and your RV and acts as a gatekeeper for the power coming into your rig.

A surge protector handles voltage spikes. An EMS does that and more—it actively monitors incoming power for low voltage, open ground, open neutral, and reverse polarity, and cuts the connection if something is wrong. That matters more than most new RVers expect. As the Electrical Safety Foundation International notes, many outdoor electrical installations go years without inspection or licensed maintenance—campground pedestals included. Low voltage is the sneaky threat: as dozens of RVs fire up their AC units on a hot afternoon, voltage at the pedestal can sag significantly, and running motors and electronics under sustained low voltage destroys them quietly over time.

For frequent campers, older parks, or anyone running AC hard, an EMS is the smarter investment. For lighter users at newer campgrounds, a quality surge protector provides solid baseline protection. Both come in portable and hardwired versions—portable units let you assess pedestal quality before committing to a site; hardwired units live inside your rig and can't be stolen. Either way, this needs to be in your kit before your first trip.

Should Your Battery Be On or Off While Plugged In?

Leave it on. When you're hooked up to shore power, your RV's converter takes the 120-volt AC from the pedestal and converts it to 12-volt DC—which runs your interior lights, water pump, vent fans, slide motors, and other low-draw systems, while also keeping your battery topped off.

With the battery connected, it acts as a buffer for the 12-volt system, smoothing out any inconsistencies in the converter's output and providing the burst of power that high-draw loads like slide motors need in the moment. Modern multi-stage converters manage charging across bulk, absorption, and float phases, so leaving your battery connected during a normal camping trip won't overcharge it. A battery monitor mounted inside the rig lets you track voltage and state of charge at a glance—useful whether you're on shore power or not. Keep the disconnect switch on and let the system do its job.

RV-Rated Cords and Adapters Only

Household extension cords are not rated for RV current draw—that's not a technicality, it's a fire hazard. If you need additional length, use an RV-specific extension cord rated for your amperage. For 30-amp service, that means a 10-gauge cord no longer than 50 feet. Never chain multiple cords together.

One thing most people don't anticipate: how much RV power cords weigh. A 30-amp 25-foot cord typically runs 6–8 pounds—manageable. A 50-amp cord at the same length weighs 25–30 pounds, and a 50-footer pushes 35 or more, because the heavier 6-gauge wire required to carry that current simply adds up. If you're wrestling with a heavy 50-amp cord every hookup, a dedicated cord reel designed for RV use is a worthwhile upgrade. And if your single-AC rig is technically 50-amp capable but doesn't need the full 12,000 watts, running a 30-amp cord through a 50-to-30-amp dogbone is a perfectly valid workaround—just know you're capping at 30 amps.

Inspect your cords before every trip. Cracks, burns, or loose fittings aren't cosmetic issues—more on what a burned plug actually signals below. For a broader look at what should be on your pre-trip inspection list, our RV maintenance checklist covers everything from tires to roof seals to electrical components in one place.

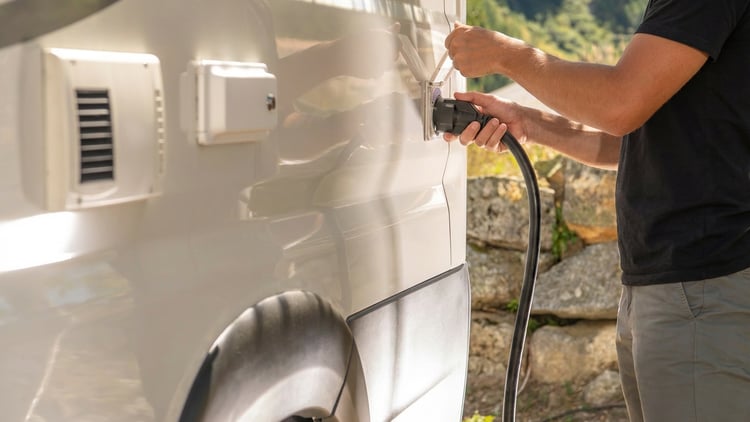

How to Hook Up RV Shore Power: The Exact Sequence

Follow this order every single time. It's not complicated, but the sequence matters.

Step 1: Turn Off the Pedestal Breaker

Open the campground power pedestal and flip the breaker to OFF before you plug anything in. Connecting to a live circuit risks arcing, which degrades your plug contacts every time it happens.

Step 2: Inspect the Pedestal Outlet

Take five seconds to look at the outlet before touching it. Check for burn marks, corrosion, or cracked receptacles. If something looks off, flag it with campground staff—this is your first line of defense, before your EMS is even in the picture.

Step 3: Plug In Your Surge Protector or EMS

Insert your surge protector or EMS into the pedestal outlet, then turn the breaker ON briefly to let it run its diagnostic check. Most units will display a "safe" indicator if power quality is good, or an error code if they detect wiring faults, voltage issues, reverse polarity, or open neutrals.

If there's an error—stop. Turn the breaker back OFF and report the issue to campground management. Don't work around it.

Step 4: Connect Your RV Power Cord

Plug your RV's shore power cord into the surge protector or EMS. Make sure the connection is fully seated, twisted and locked if applicable, and secure. A partially seated plug creates resistance, and resistance generates heat over time.

Step 5: Turn the Breaker Back On

Flip the pedestal breaker to ON, then head inside and confirm power: lights on, microwave display lit, outlets live. If you're not getting power, check your trailer's internal circuit breakers and reset any GFCI outlets (usually in the bathroom). Still nothing? Contact the campground—they can assist with pedestal-side issues.

That's it. Breaker off → Inspect → EMS check → Connect RV → Breaker on. Every time.

What a Burned RV Plug Is Telling You

If you unplug your shore power cord and notice charred, discolored, or partially melted prongs—don't dismiss it as cosmetic. That's a sign something already went wrong, and plugging that cord back in makes it worse.

Burned plugs almost always trace back to a loose fit at the pedestal receptacle. As the female contact inside the pedestal wears with repeated use, it makes less firm contact with your plug's prongs. Poor contact creates resistance, resistance creates heat, and heat causes the receptacle to expand further—a feedback loop that ends in a charred plug. Because this happens below the breaker's trip threshold, you won't get an early warning from a tripped circuit.

When you find one: retire the cord immediately, and replace the pedestal receptacle if applicable—plugging a new cord into a damaged socket just damages the new cord. If the burn is on the campground side, report it to management.

Prevention comes down to consistency: always turn the breaker off before connecting or disconnecting (arcing is what starts the degradation), inspect prong contacts for the dull greenish tint of early corrosion before each trip, and never use undersized or overly long cords. The National Fire Protection Association, which sets the standards RV electrical systems are built around, offers solid resources on safe cord and wiring specifications.

Hooking Up in the Rain: What's Safe and What's Not

Rain has a way of showing up right when you're trying to set up camp. The good news: RV shore power cords are built for outdoor use, with weather-resistant jacketing and insulated connectors. Rain on the cord itself isn't the problem.

What you need to protect are the connection points—where your cord meets the EMS, and where the EMS meets the pedestal. Water pooling inside an active connection is a problem; water running off a sealed, locked connection generally isn't. Never leave any connection sitting in standing water or a puddle.

When it's raining, keep the same sequence: breaker off first, then connect quickly and deliberately, shielding the plugs during the moment of joining. Once locked in, most twist-lock connections and quality EMS housings shed water on their own. Routing the cord under the RV keeps the mid-cord connection shaded and off wet ground—drape it over a storage bin to keep the joint elevated. For heavier rain, a small plastic container with cord notches cut into it placed over the connection works well as a quick cover.

If there's lightning in the area, disconnect entirely and wait it out. Your EMS handles electrical faults—it isn't built for a near-direct lightning strike on the pedestal.

How to Store the Cord While You're Hooked Up

Routing your cord under the RV while connected is smart—it stays shaded, off wet grass, and out of foot traffic. But how you lay it matters more than where.

Never coil or bundle a shore power cord that's actively carrying current. Heavy-gauge copper under load generates heat, and a coiled cord traps it—degrading insulation and accelerating the contact corrosion that leads to burned plugs. Lay it in loose S-curves with slack at both ends so there's no tension at either connection point. Keep connections elevated off the ground—a piece of wood, a storage bin lid, an upside-down bucket—to minimize moisture at the joints. UV also degrades the outer jacketing over time, so a shaded run extends your cord's service life meaningfully.

Common RV Shore Power Mistakes (And What They Actually Cost You)

Skipping the surge protector or EMS. Electrical problems happen at new campgrounds and old ones alike. The campground's liability clause almost certainly doesn't cover your appliances—your protection is your responsibility.

Plugging in or unplugging under load. Always turn the breaker off before connecting or disconnecting. Arcing on a live connection degrades plug contacts over time.

Running too many high-draw appliances on 30-amp service. AC, microwave, and electric water heater simultaneously will trip your breaker. Know your watt budget and stagger usage.

Ignoring flickering lights or weak appliances. That's low voltage. Unplug and report it—it's a compressor-killer in slow motion, not a quirk to live with.

Using household extension cords. Not rated for RV current draw. This is how fires start.

For a broader look at what keeps rigs road-ready between trips, our RV maintenance checklist covers electrical, mechanical, and structural checks all in one place.

Troubleshooting: When Things Don't Go As Planned

No power inside the RV? Work through this in order: pedestal breaker, surge protector indicators, internal breaker panel, GFCI outlets.

Breaker keeps tripping? Turn off high-draw appliances, reset the breaker, then bring them back online one at a time to find what's overloading the circuit.

AC struggling, lights dim, appliances running weak? Low voltage. Unplug immediately and notify campground management—sustained low voltage destroys compressor motors over time. This is the same slow-drain problem covered in our guide to why RV batteries keep dying—electrical gremlins often trace back to the same root causes.

EMS showing an error code? Don't work around it. Open ground, open neutral, reverse polarity—these require campground maintenance, not your creativity.

How to Unhook Shore Power When You Pack Up

The disconnect sequence is the hookup sequence in reverse: always make the break with the breaker off.

Start inside by turning off high-draw appliances, especially the AC. Go to the pedestal and flip the breaker to OFF. With the circuit dead, unplug your RV cord from the EMS, then unplug the EMS from the pedestal. Walk the cord back toward your rig, checking for new kinks or damage as you go, and stow it loosely—never tightly coiled, dry if possible.

Before packing everything away, do a quick visual on the prongs and the pedestal outlet. Discoloration or burns that weren't there before are worth noting—flag the pedestal for campground staff if it looks worse than when you arrived.

If you're also managing a tow vehicle setup, our guide to towing a travel trailer for the first time covers the full departure sequence, including safety checks before you pull out of the site.

The Bottom Line on RV Shore Power

RV shore power hookup isn't complicated—it's sequential. Breaker off, inspect the outlet, run your EMS check, connect your cord, breaker back on. Do it the same way every time and it becomes second nature within a handful of trips.

The bigger lesson is that your electrical protection is an active choice. Campground pedestals aren't always reliably wired or well-maintained, and that's not your problem to fix—but it is your problem to protect against. A quality surge protector or EMS is cheap insurance against a very expensive repair. If you're building out your full list of must-have gear, our roundup of essential camping and RVing gear is worth a read before your next trip.

Get the sequence right, invest in the right protection, and your electrical setup becomes one of the most satisfying parts of pulling into a new campsite. Power's on, AC is humming, and the adventure actually starts. Electrical is one system out of ten, and the free Complete RV Maintenance Guide covers the other nine with the same what-to-check-and-when structure.

FAQs

What is RV shore power and how does it work?

What is the difference between 30-amp and 50-amp RV service?

Do I need a surge protector or EMS for RV shore power?

Should I leave my RV battery connected while on shore power?

What causes a burned RV shore power plug?

Is it safe to connect RV shore power in the rain?

How do I know if my campground pedestal has a wiring problem?
